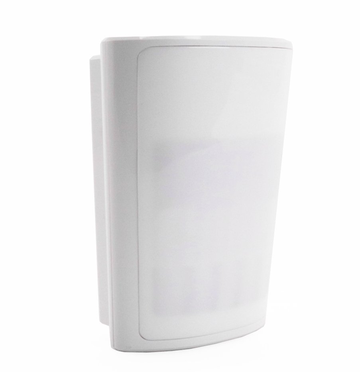

DSC PG9914 Motion Sensor Battery Replacement Instructions

1.       Locate the sensor with a low battery.

2.       To open the cover, press the tab at the bottom of the sensor to remove the cover.

 3. Remove and replace the 3-volt lithium CR123A battery.

4. Make sure the area where the batteries are stored is clean and there is no corrosion.

5. Put the cover back on starting with the opposite end from which it was opened. You should hear a snapping sound if it closes correctly.

6. The low battery status should clear from the system within 12-24 hours. If not, please call for service.
